ECHELON: A Cloud Computing Use Case
Evaluating the productivity enhancements of Fishbones in fractured carbonate reservoirs using high-performance cloud-based reservoir simulation.
Evaluating the productivity enhancements of Fishbones in fractured carbonate reservoirs using high-performance cloud-based reservoir simulation.
Jul 24 2024
Simulating the potential productivity improvement from a Fishbones completion in a dual porosity/dual permeability reservoir in the cloud.

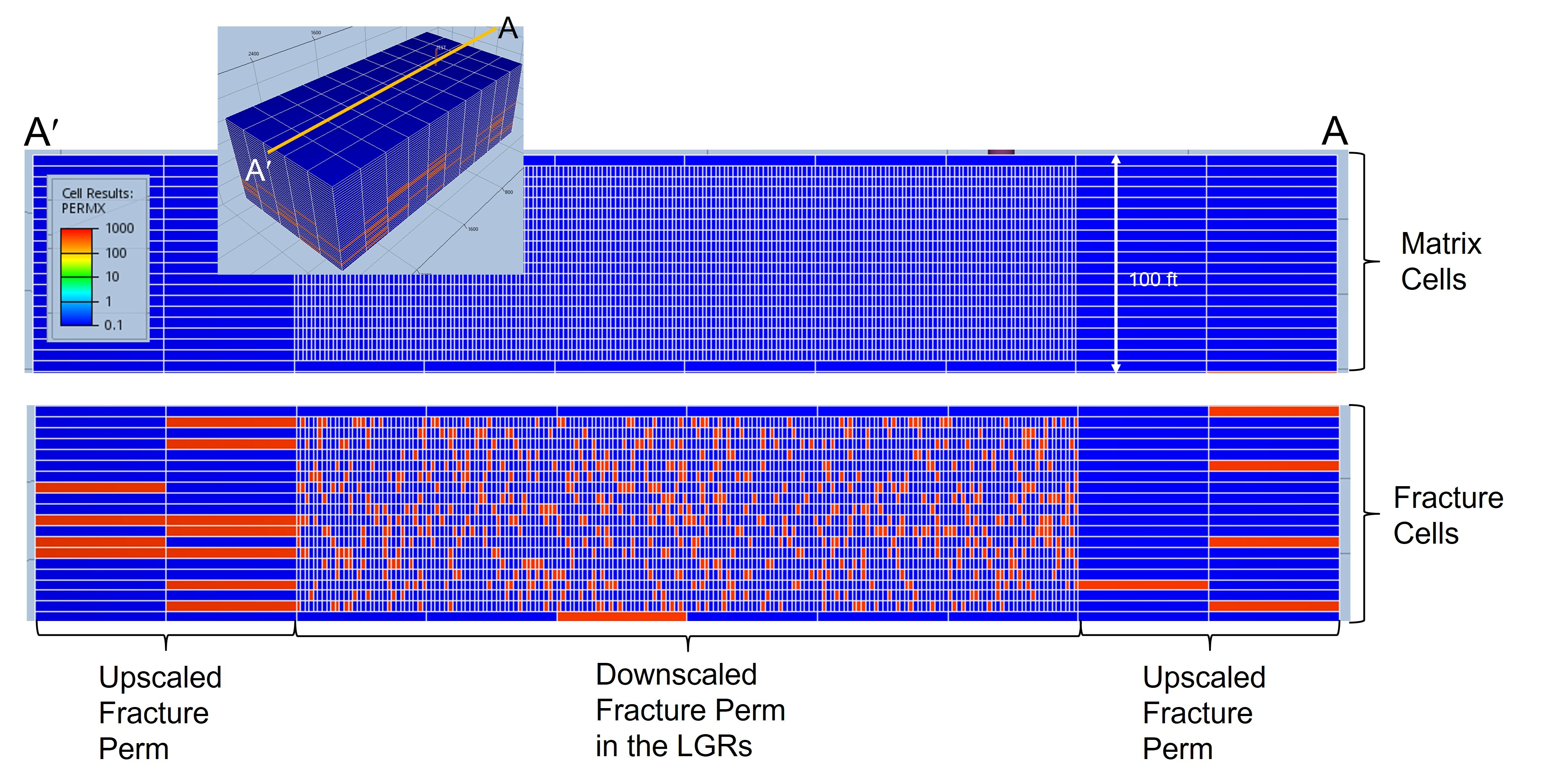

Simulating well productivity improvement from a Fishbones completion in a dual porosity/dual permeability reservoir model requires a very fine grid in order to capture the flow physics around the Fishbones laterals (obtained by local grid refinement, or LGR) and consequently a large number of completion connections.
This, coupled to the small effective porosity of fracture cells, causes simulators to take small timesteps; from 5 minutes at startup, to a maximum of 2 hours.
Multiple completion optimization strategies were simulated using ECHELON Cloud. The model at hand has 100,000 cells in the LGRs. To model the Fishbone laterals, 1500 well connections are needed in six different LGRs.
It became practical to use a dual porosity/dual permeability model with very finely gridded LGRs to perform long-term forecasts for this type of reservoir and completion, or to perform history matching of initial production (3-6 months), to understand and optimize the completion performance.

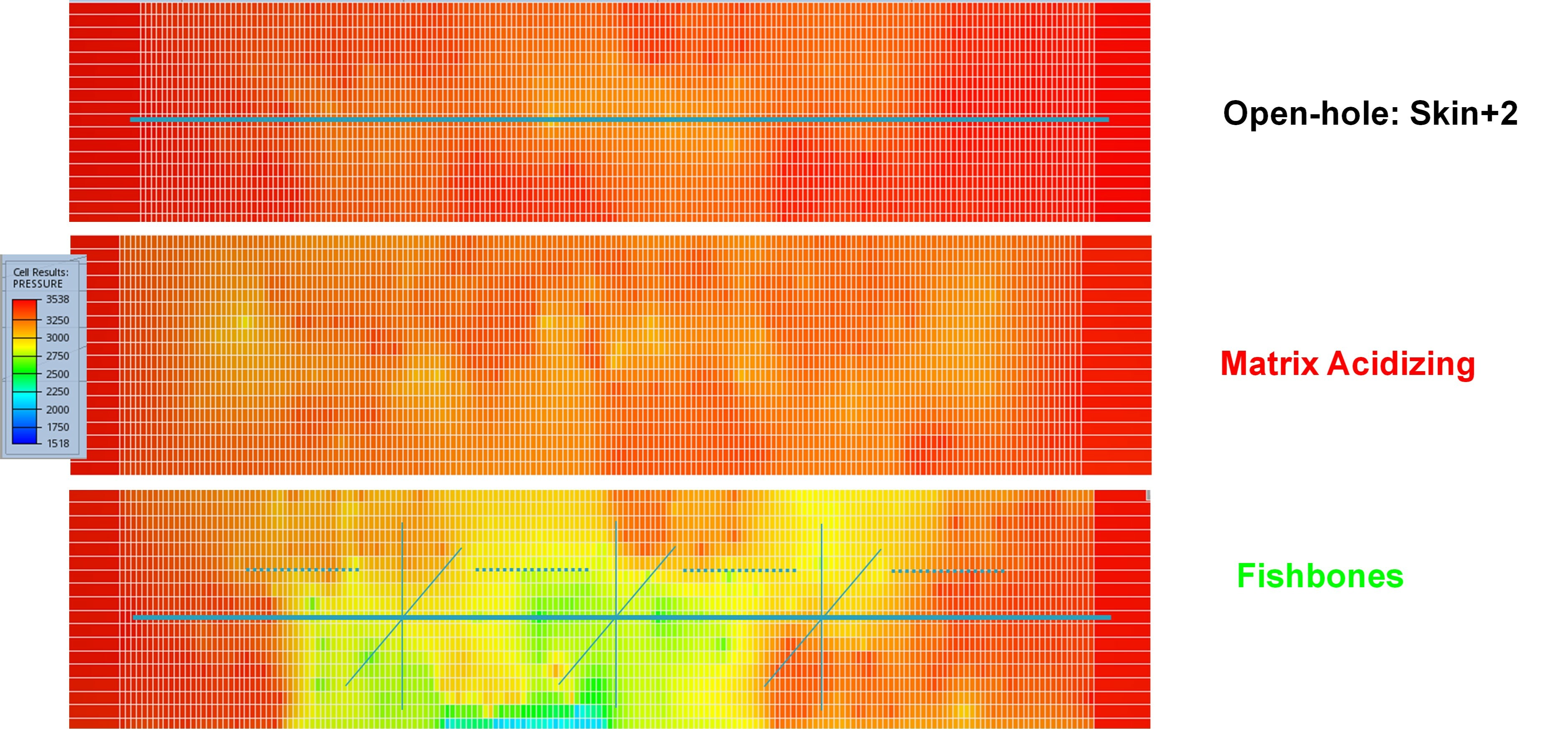

In the figure herein, we can see the simulation results for pressure in the model; these show how the different stimulation methods increase the connectivity of the well to the existing natural fracture network, thus producing more oil and resulting in more pressure depletion across the entire reservoir height.
